BIM Designer — Browser Edition¶

Foundation: BIM_Designer.md · RTreeGuide.md · MANIFESTO.md · 4D5DAnalysis.md

Version: 0.2 (2026-04-22) Status: LIVE — modular sandbox viewer (S209 refactor) Depends on: deploy/sandbox/index.html + 15 JS modules, per-building DBs in deploy/buildings/

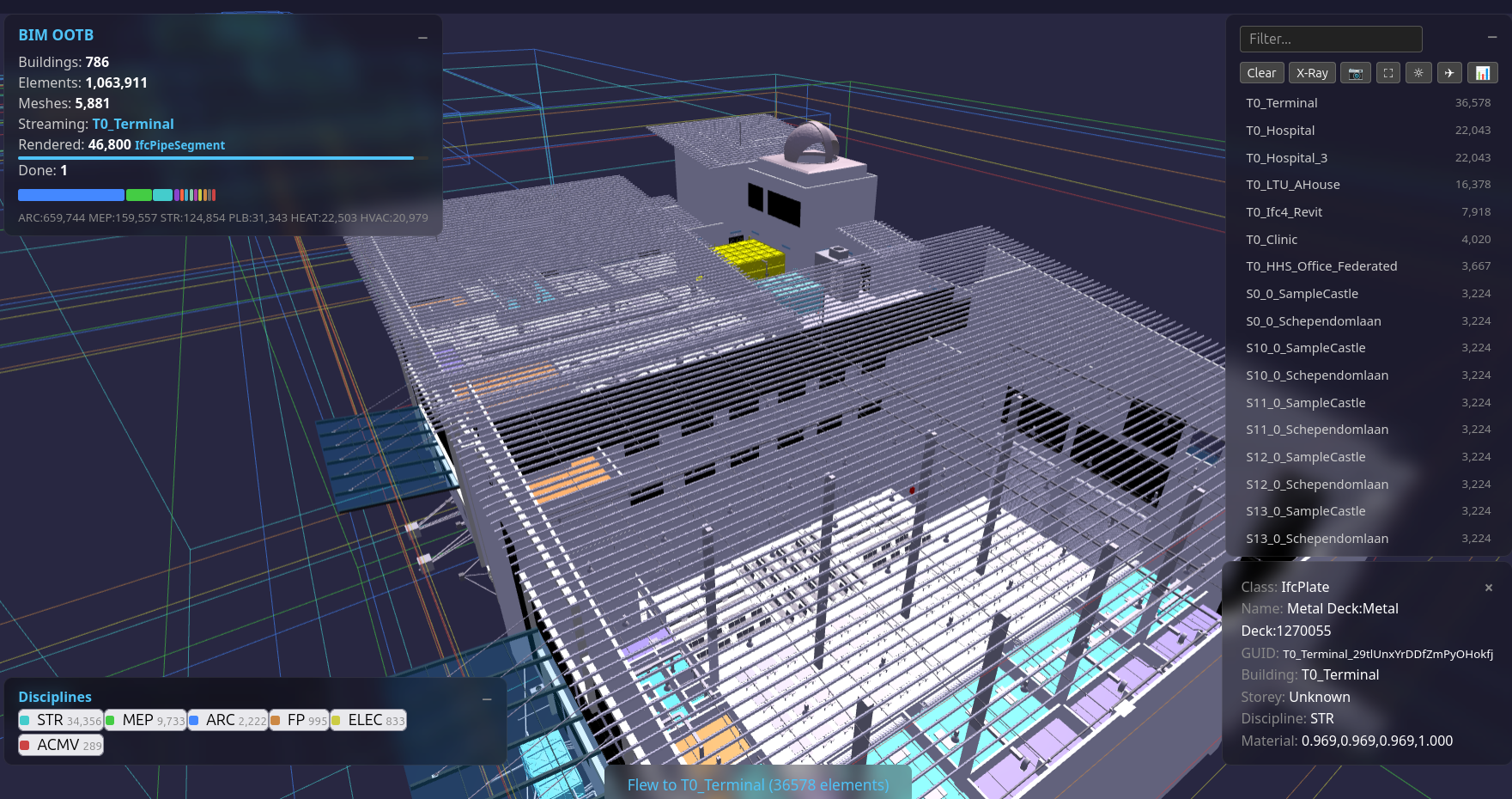

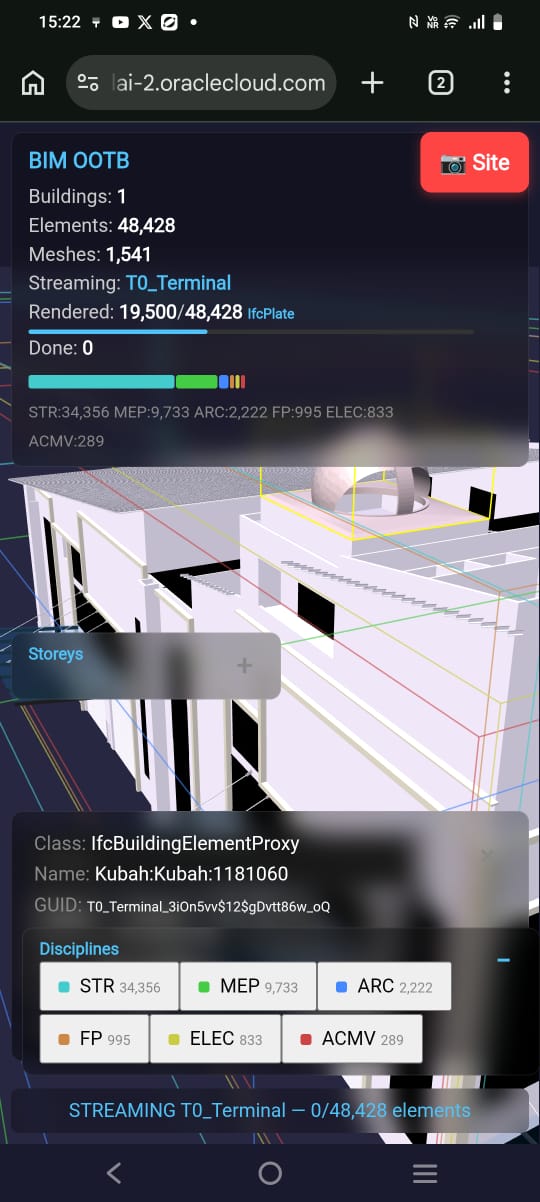

BIM OOTB — Browser-native BIM viewer — BIM OOTB — 126K elements streaming in the browser. No install, no server, no conversion.

1. What Changed — The S200 Proof¶

S200 proved that a single HTML file + two static DBs + sql.js (WASM SQLite) renders IFC buildings in the browser with: - Correct rotation, transparency, original IFC material colours - Streaming from BLOB geometry (no intermediate format) - 126K elements (LTU AHouse) renders to completion - X-Ray mode (Alt+Z), trackpad orbit/pan, flat shading - No server, no API, no backend

This breaks the client bottleneck. Every Bonsai feature that reads from the DB (not Blender-specific) can be replicated in the browser. The DB schema IS the API.

1.0 The Technology Stack — WebAssembly (WASM)¶

The enabling technology is WebAssembly (WASM) — a binary instruction format that runs native-speed code inside the browser sandbox. What matters for us:

sql.js compiles the entire SQLite C library (~250K lines) to WASM. The browser downloads a ~1MB .wasm file from CDN, and from that point it has a full SQL engine running locally — the same SQLite that powers every smartphone on earth. When we call db.exec("SELECT vertices FROM component_geometries WHERE ..."), that query runs inside the browser tab at near-native speed. No server round-trip.

Three.js is the 3D rendering library. It wraps WebGL (the browser's GPU API) and gives us BufferGeometry — the ability to hand raw vertex/face arrays to the GPU. When we unpack a BLOB from SQLite into a Float32Array, Three.js renders it in microseconds. The GPU doesn't care where the data came from.

The pipeline in the browser:

sql.js (WASM)                    Three.js (WebGL/GPU)
     │                                │
     │  SELECT vertices, faces        │
     │  FROM component_geometries     │
     │  WHERE geometry_hash = ?       │
     ▼                                │
  Uint8Array (BLOB)                   │
     │                                │
     │  new Float32Array(blob)        │
     │  swap axes: IFC→Three.js       │
     ▼                                │
  Float32Array (positions)  ─────────▶ BufferGeometry
                                       │
                                       ▼
                                    GPU renders mesh

No intermediate file format. No glTF. No OBJ. No server-side conversion. The BLOB in the DB IS the mesh. The browser IS the renderer.

1.1 What Changed — Honest Assessment¶

Individual components existed before. What's new is the combination at scale and the elimination of server-side infrastructure.

Component	Prior Art	What We Added
sql.js WASM	Existed since 2016. Could load large DBs if browser had RAM.	Per-building DB split + IndexedDB caching. Each building downloads in 1-2s, cached for instant revisit. No server needed.
Three.js BufferGeometry	Mature since 2015. Every web viewer uses it.	Nothing — we use it as-is.
DB-as-model	IFC.js (2020) parses IFC in WASM. Speckle (2019) serves objects via API.	Different architecture: we store pre-tessellated BLOBs in SQLite alongside metadata. No re-parsing, no API server. The browser queries the same DB for both geometry and properties. IFC.js re-parses geometry each time. Speckle requires a server.
Browser BLOB streaming	glTF/OBJ loading in browsers since 2015. IFC.js streams parsed geometry.	Streaming from SQLite BLOBs (not file formats) means geometry and metadata share one query layer. No export/import step — the BLOB is a column, not a file.
nD analytics (4D-8D)	SQL queries on element attributes — the operations themselves are standard relational algebra.	The novelty is the template-driven engine + single-DB pipeline: 5 dimensions from one `_extracted.db`, user-editable JSON templates, self-healing dependency chain, 8.7s at 1M elements. Commercial tools charge $60-180K/yr and silo each dimension behind separate vendors.

What's genuinely new: the full pipeline — IFC → extracted DB → pre-tessellated BLOBs → browser renders geometry AND runs analytics from the same SQL layer, with zero server infrastructure. The components existed. The integration at 126K elements with 60fps did not.

2. Deployment Architecture¶

2.1 Static File Deployment (OCI / Any CDN)¶

┌──────────────────────────────────────────┐
│  OCI Object Storage (public bucket)      │
│                                          │
│  index.html (landing page)               │
│  rtree_browser_demo.html (viewer)        │
│  manifest.json (building catalogue)      │
│  buildings/                              │
│    city_index.db (324KB — 786 bboxes)    │
│    SampleHouse_extracted.db (0.1MB)      │
│    SampleHouse_library.db (0.4MB)        │
│    Hospital_extracted.db (28MB)          │
│    Hospital_library.db (59MB)            │
│    ... 30 archetypes × 2 DBs each       │
└──────────────┬───────────────────────────┘
               │  fetch() per building (1-2s)
               ▼
┌──────────────────────────────────────────┐
│  Browser (any modern browser)            │
│                                          │
│  sql.js (WASM) ← CDN                    │
│  Three.js      ← CDN                    │
│  OrbitControls ← CDN                    │
│                                          │
│  IndexedDB cache (bim_ootb_cache)        │
│    → first visit: download + cache       │
│    → repeat visit: instant from cache    │
│                                          │
│  DB in WASM → SQL queries → BLOBs       │
│  → BufferGeometry → GPU render           │
└──────────────────────────────────────────┘

No server. No API. No Docker. No backend. Just files.

2.2 Loading: Per-Building Direct Download + Cache¶

Each building is a separate DB pair ({name}_extracted.db + {name}_library.db). Browser downloads the pair via fetch(), loads into sql.js (in-memory SQLite), renders with Three.js. IndexedDB cache (bim_ootb_cache) stores downloads — second visit is instant (no network).

httpvfs (HTTP Range requests) was tried and retired. Each SQLite page fetch = 130ms network round-trip. A single query on a 579MB DB needs 50-100 page fetches = 6-13 seconds of stalling. Direct download of per-building DBs (1-60MB each) completes in 1-2 seconds. See S203 prompt for details.

2.3 Per-Building DB Sizes¶

Building	Elements	Unique Meshes	Download (ext+lib)
SampleHouse	65	51	0.5 MB
Duplex	1,169	650	2.8 MB
HITOS	2,593	1,706	5.9 MB
Clinic	16,480	7,654	31 MB
Terminal	48,428	7,150	59 MB
Hospital	63,917	23,045	88 MB
LTU AHouse	125,698	51,392	177 MB

All 30 archetypes extracted. Extraction script: scripts/extract_per_building.py.

3. Feature Roadmap — What Goes In¶

Phase 1: Viewer + Inspector (S200 — DONE)¶

[x] Building bbox wireframes (city overview)
[x] Click building → stream geometry from BLOBs
[x] Per-element rotation (Euler XYZ)
[x] Material transparency (alpha from material_rgba)
[x] IFC material colours (discipline fallback for NULL)
[x] Flat shading (crisp BIM edges)
[x] Building list panel (clickable cards, sorted by size, filter input)
[x] Fly-to building
[x] HUD: building name, streaming progress bar, element flicker
[x] Trackpad + mouse orbit/pan/zoom (Shift+drag = pan)
[x] Collapsible panels (−/+ toggle)
[x] Element picker (click → class, name, GUID, storey, discipline, material)
[x] Yellow bbox highlight on selected element
[x] Hover highlight (emissive glow + pointer cursor)
[x] Discipline toggle (show/hide per discipline, strikethrough when OFF)

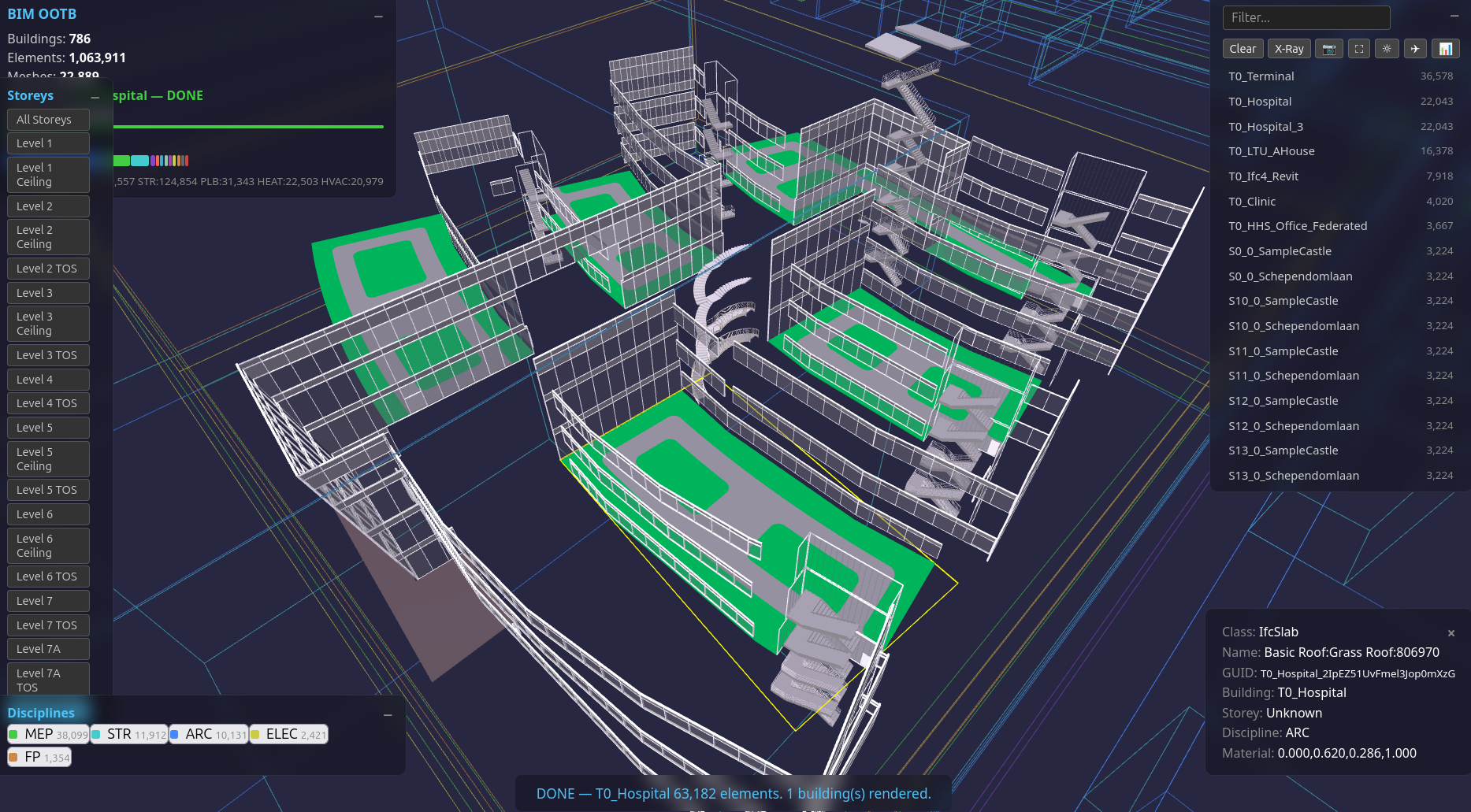

[x] Storey filter (isolate floors, works with discipline filter)
[x] X-Ray mode (Alt+Z, 15% opacity)
[x] Fly-around rendered buildings (orbit + auto-transition between buildings)
[x] Screenshot (camera icon, white flash, downloads PNG)
[x] Fullscreen (icon + F11)

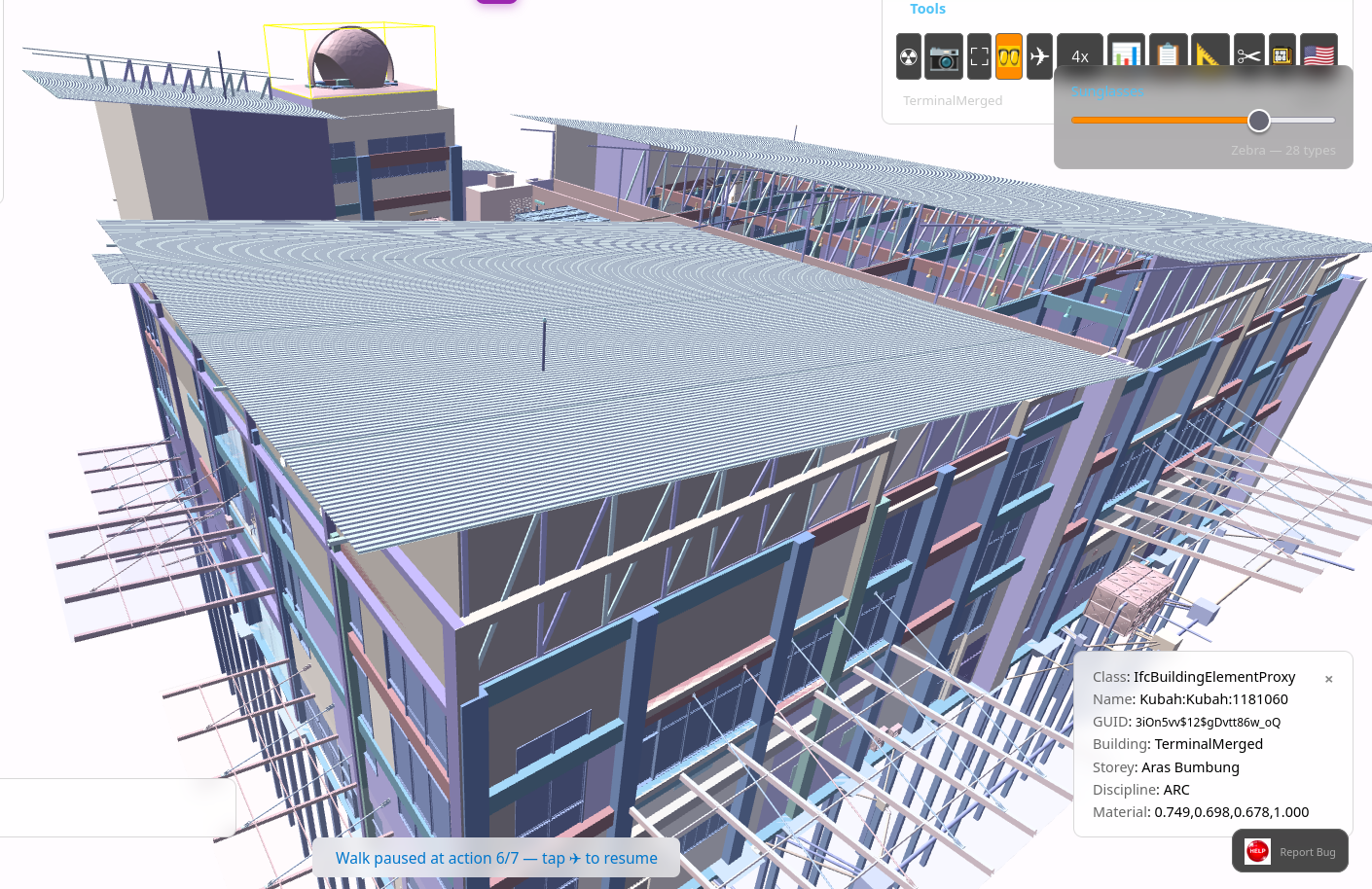

[x] Light/dark theme (white background, bboxes hidden for print)
[x] URL deep-link (hash encodes building + camera position)
[x] Stream pause/resume (switch buildings, resume where left off)
[x] Unrestricted orbit (full 360° top-to-bottom)

Phase 2: Next¶

[ ] Property panel — selected element's full attribute set from DB
[ ] Multi-building streaming — stream nearest on camera move, shred distant

Phase 2b: IFC Import + Variation Order (S220/S222 — DONE)¶

Drop an IFC file. Get a costed Variation Order Excel. Zero install.

[x] IFC import — drag-drop IFC2x3/IFC4/IFC4x3 → web-ifc WASM parse → sql.js DBs → IndexedDB
[x] Shared DB builder — import_db_builder.js, single source of truth for import schema
[x] Auto-save — DBs auto-download after import (no Save button click)
[x] Variation detection — re-import same building → auto-detect version (v2, v3 badge on card)
[x] GUID-based diff — compare two imports: ADDED (green), REMOVED (red ghost), CHANGED (yellow)
[x] Diff overlay — colour-coded elements in 3D viewer with live cost preview panel
[x] Variation Order Excel — 3-sheet export:
Configuration — editable cost factors, set once per project
Detail — every affected element: IFC class, unit rate, cost factor, direct cost, total impact (with O&P), schedule days, 4D phase
Executive Summary — scope count, 5D cost breakdown (add/remove/change), 4D schedule impact per phase, EVM formula reference
[x] Cost model — industry-standard formulas:
FIDIC Clause 12 valuation: Direct Cost + Overhead + Profit
AACE change order costing: ADD=1.0×, REMOVE=0.3× (demo+disposal), CHANGE=1.3× (remove+reinstall+disruption)
PMI Earned Value: CV, SV, CPI, SPI reference formulas
Total Impact = Direct × (1 + 10% Overhead + 15% Markup) × (1 + 5% Disruption)
[x] Rates — CIDB Malaysia 2024 (material, labour, equipment), USD conversion, configurable per project
[x] 4D schedule impact — elements/day productivity from templates/4D_phases.json, phase grouping
[x] Test harness — s220_test.js: 58 PASS / 0 FAIL (schema, transforms, BLOBs, envelope, integrity)

Templates (editable — set once per project):

Template	File	What to Edit
5D Material Rates	`templates/5D_rates.json`	Unit rates per IFC class, labour rates, equipment
4D Construction Phases	`templates/4D_phases.json`	Phase sequence, productivity, predecessors
VO Cost Factors	`variation_order.js` §VO_CONFIG	Add/remove/change multipliers, overhead%, markup%
nD Master Formulas	`templates/nD_formulas.json`	Measurement rules, cost/schedule/carbon formulas

How it works — the change management cycle:

Drop IFC file on landing page → auto-parsed, auto-saved as v0 (baseline)
Architect issues a revised IFC → drop it, select "Merge" → stored as v1
Open → viewer loads v0 (baseline), computes GUID-based diff against v1:
ADDED (green) — new GUIDs in v1, streamed from v1's geometry
REMOVED (red ghost, 50% opacity) — GUIDs in v0 absent from v1
CHANGED (yellow) — same GUID, different properties (name, material, storey)
Diff panel shows count + 5D cost preview (live in viewer)
Click 4D/5D → variance chart (element count + cost impact) + text summary
Save 5D = acceptance — Excel includes VO Detail + VO Summary sheets
Next revision → import v2, diff against v1. Repeat.

Diff detection — merge vs revision: - Revision (GUID overlap >= 10%): same building, modified. Full diff: added/removed/changed. - Merge (overlap < 10%): distinct buildings combined. Added elements shown, base untouched — no false "removed" flags.

Diff chain (internal):

landing openProject()  → caches v0 as ?db=, v1 as ?diffdb=
  → §OPEN_DIFF
viewer main.js         → loads diffDb from ?diffdb= param
  → §DIFF_DB_LOADED → diff.js computeDiff() → §DIFF
  → applyDiffOverlay() colours base meshes + streams added from diffDb
  → §DIFF_OVERLAY → showDiffSummary() → §DIFF_SUMMARY
4D/5D boq_charts.html  → loads both DBs, computes same GUID diff
  → §BOQ_DIFF → variance chart rendered
  → Save 5D: VO Detail + VO Summary sheets appended → §VO_IN_5D

Rate templates (editable — set once per project):

Template	Path	What to Edit
5D Material Rates	`deploy/dev/boq_charts.html` §RATES	Unit rate per IFC class (RM), unit, description
4D Construction Phases	`deploy/dev/boq_charts.html` §PHASES	Phase name, productivity (elements/day), crew size
VO Cost Factors	`deploy/dev/variation_order.js` §VO_CONFIG	Add=1.0×, Remove=0.3×, Change=1.3×, overhead 10%, markup 15%, disruption 5%
Discipline Colours	`deploy/dev/boq_charts.html` §DISC_COLORS	Chart colour per discipline (ARC, STR, MEP, etc.)

What Primavera P6 charges $5K/seat for, we do from a browser for zero.

Enterprise setup: The browser import creates a single self-contained DB per building (metadata + geometry, instanced and deduped). For organisations needing a centralised component library shared across projects — where one curated library.db serves multiple buildings with consistent geometry and materials — contact the creator at red1org@gmail.com for consultation on shared library architecture and deployment.

Phase 3: Analysis — nD Engine in the Browser¶

Query-driven overlays — same DB, richer SQL. The nD engine (4D5DAnalysis.md) already produces 4D-8D tables from JSON templates + elements_meta. Phase 3 ports this to JavaScript (same SQL queries, same templates, same _extracted.db via sql.js). No server — the browser IS the analytics engine.

[ ] nD engine (JS port) — port scripts/nD_engine.py (~800 LOC) to browser JS Same JSON templates (templates/*.json), same SQL, same output tables. User drags custom 5D_rates.json onto page → browser re-runs 5D with local rates. Self-healing: request 6D → auto-generates 5D if missing (same as Python engine).
[ ] BOQ/Cost overlay — colour-code elements by cost band (5D) Query: simple_qto table (generated by browser nD engine or pre-baked in DB)
[ ] 4D timeline — slider scrubs schedule, elements appear/disappear Query: construction_schedule table → show/hide meshes by start_date
[ ] 6D carbon heatmap — colour intensity by embodied carbon per element Query: carbon_audit table
[ ] 7D asset register — click element → warranty, service interval, replacement year Query: asset_register table
[ ] 8D safety overlay — risk-level colour coding (LOW=green → VERY HIGH=red) Query: hazard_register table

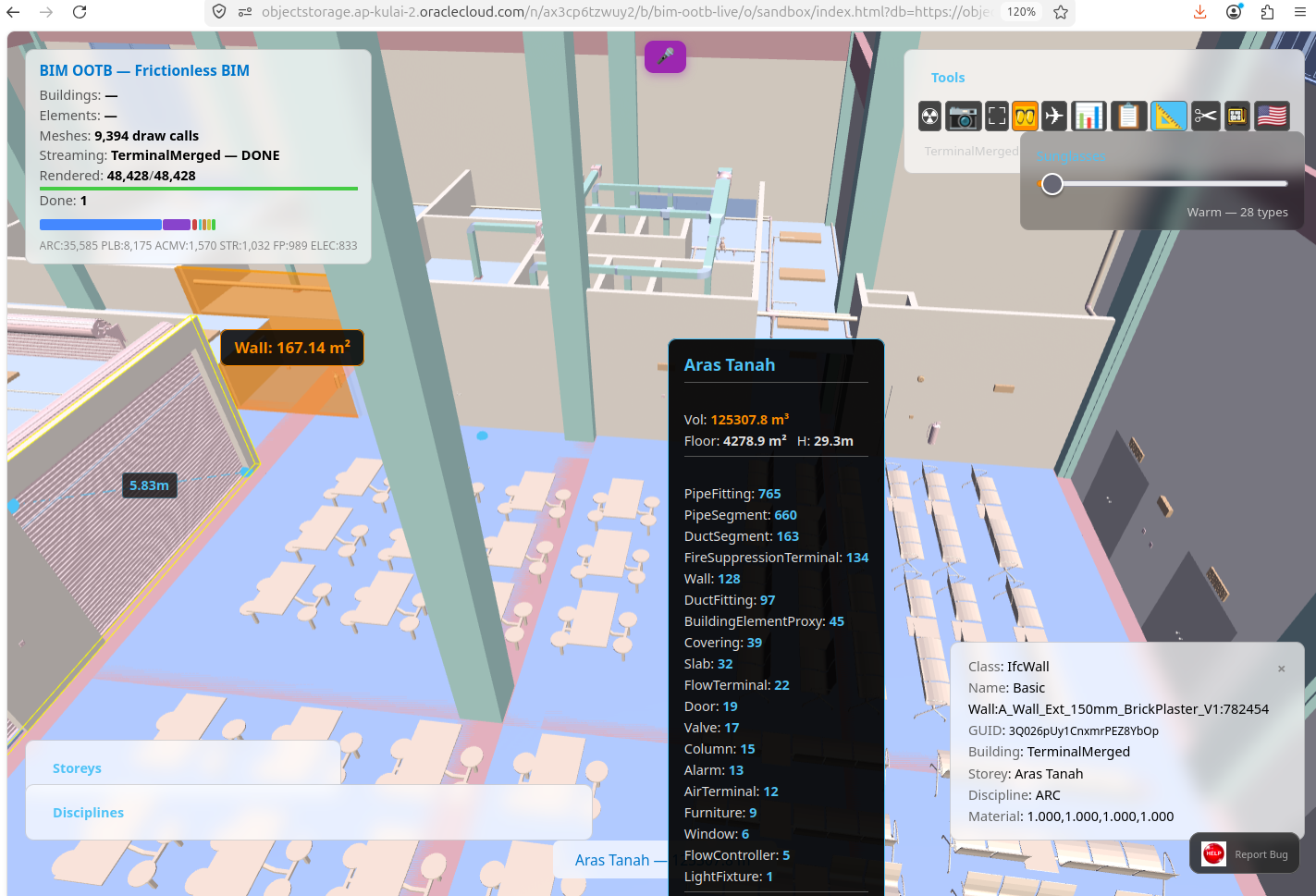

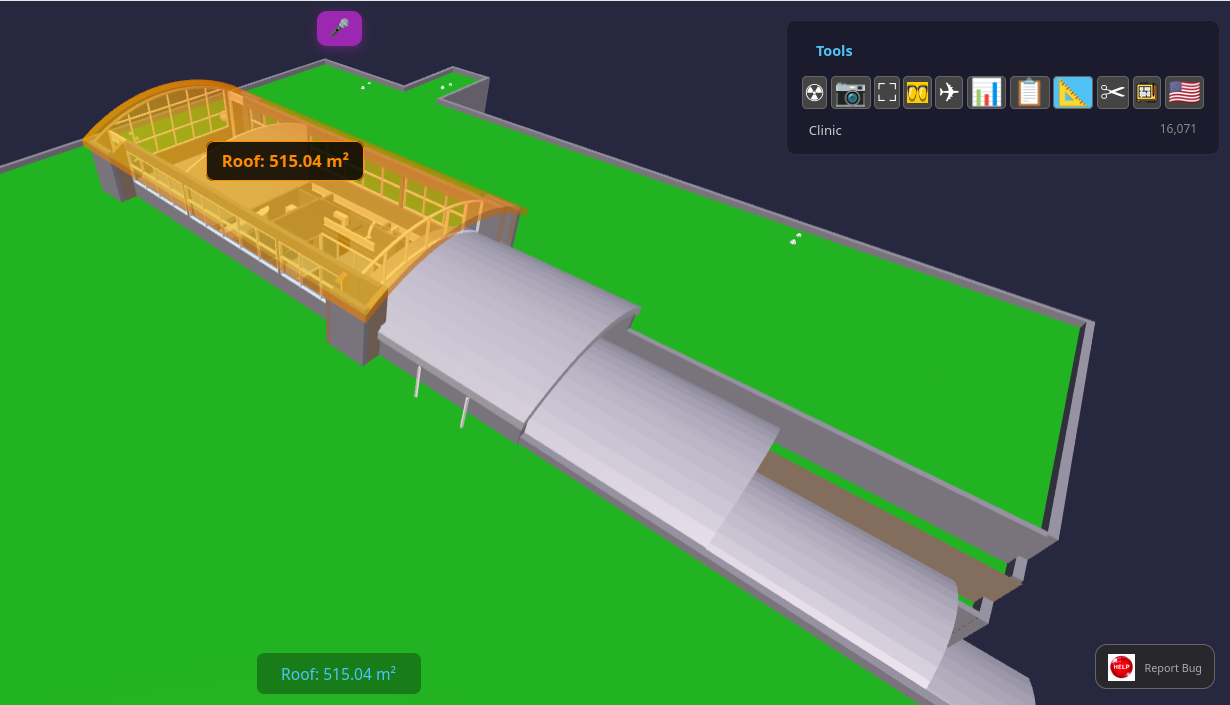

[ ] Measurement tool — pick two points, show distance
[ ] Section plane — Three.js clipping plane, slider to cut through floors
[ ] Excel export — SheetJS generates XLSX from SQL query results in-browser Same BOQ/schedule/carbon/asset/safety reports as nD_engine.py --all
[ ] Template editor — HTML form to load/validate/save JSON templates (5D rates, 6D carbon, etc.) QS edits rates in browser, re-runs 5D, downloads Excel. Zero install.

Phase 4: Composer (future — preserves BIM Designer vision)¶

This is where the original BIM Designer's building composition returns. This is the only phase that needs a backend. Phases 1-3 are 100% client-side, zero server.

[ ] Grid editor — drag grid lines on 2D plan overlay, snap-to-grid
[ ] Room editor — drag room bboxes within grid cells
[ ] BOM browser — collapsible tree panel from BOM hierarchy in DB
[ ] Product picker — query component_library for alternative products
[ ] Route Walker config — choose MEP routing strategy, the server generates pipes/ducts
[ ] Compile trigger — send Work Order to backend, receive compiled DB, re-render

4. Phase 4 Deep Dive — The Modeller Bridge¶

4.1 Why It's Feasible¶

The compiler is already a pure function:

Work Order (JSON) → Java compiler → output.db → browser renders

The BIM Designer spec (§11.4) already defines the wire protocol:

→ {"action":"compile","buildingId":"SampleHouse","bomDbPath":"..."}
← {"success":true,"elementCount":58,"compileTimeMs":847,"outputDbPath":"..."}

The browser just needs to: 1. Collect parameters (grid, rooms, MEP strategy) into a Work Order 2. POST it to the compiler 3. Receive the compiled DB (or a delta) 4. Re-render with the same streaming pipeline we already have

4.2 What the Browser Edits (Macro Level Only)¶

The browser is NOT a geometry modeller. It edits parameters that the compiler turns into geometry. This is the BIM BOM philosophy — the GUI is a parameter chooser that triggers compilation.

Browser UI Control	What It Edits	Compiler Produces
Grid drag	C_OrderLine grid dimensions	Walls, columns at grid intersections
Room resize	C_OrderLine bounds (A1-B2)	Floor slabs, room boundaries
Room type dropdown	BOM recipe selection	Furniture, fixtures, finishes
Storey spinner	Number of storeys	Full floor duplication + stairs
Jurisdiction dropdown	AD_Val_Rule set	Compliance validation (UBBL etc.)
Route Walker toggle	MEP routing strategy	Pipes, ducts, cables (BIM COBOL verbs)
Product swap	M_Product_ID in BOM line	Different door/window/fitting

Key insight: None of these require the browser to understand geometry. The browser sends macro parameters. The Java compiler does the spatial maths. The browser re-renders the result.

4.3 OCI Architecture for Modeller¶

┌─────────────────────────────────────────────────┐
│  Browser (same HTML + Three.js + sql.js)        │
│                                                 │
│  ┌──────────┐  ┌──────────┐  ┌──────────────┐  │
│  │ Viewer   │  │ Inspector│  │ Composer     │  │
│  │ (Phase 1)│  │ (Phase 2)│  │ (Phase 4)    │  │
│  │ renders  │  │ queries  │  │ edits params │  │
│  └──────────┘  └──────────┘  └──────┬───────┘  │
│                                      │ POST     │
└──────────────────────────────────────┼──────────┘
                                       │
                          ┌────────────▼───────────┐
                          │  OCI Container Instance │
                          │  (or Functions/Lambda)  │
                          │                         │
                          │  Java compiler (jar)    │
                          │  - receives Work Order  │
                          │  - compiles to output.db│
                          │  - returns DB or delta  │
                          │                         │
                          │  Cost: ~$0.01/compile   │
                          │  Time: SH=0.8s, TE=30s  │
                          └────────────┬────────────┘
                                       │
                          ┌────────────▼────────────┐
                          │  OCI Object Storage     │
                          │  (static files)         │
                          │                         │
                          │  component_library.db   │
                          │  compiled output DBs    │
                          │  HTML viewer             │
                          └─────────────────────────┘

4.4 The Bridge — Is It a Hindrance?¶

No, and here's why:

Concern	Answer
Latency	SH compiles in <1s. Even TE at 30s is acceptable for a "redesign" action — user edits, clicks Compile, waits, sees result. Not real-time, but responsive.
Cost	OCI Container Instances: ~$0.01/compile. Serverless Functions: ~$0.001/compile. No idle cost if using Functions.
Complexity	One JAR file, one HTTP endpoint. The existing TCP protocol (§11.4) just wraps in HTTP POST. ~50 lines of servlet code.
DB transfer	Compiled output.db for SH = ~2MB. Even TE = ~50MB. Download + re-render = seconds.
Offline?	Phases 1-3 work offline. Phase 4 needs network for compile. Acceptable — editing implies saving.

The only real constraint: the Java compiler needs component_library.db and BOM.db on the server side. These are already static files — deploy them alongside the JAR. No database server, no connection pool, just SQLite files.

4.5 Edit→Compile→View Loop¶

User drags grid line     →  browser updates Work Order JSON (local, instant)
User clicks [Compile]    →  POST Work Order to OCI endpoint (~1s for SH)
Server compiles           →  returns output.db URL (OCI Object Storage)
Browser fetches output.db →  clears scene, re-streams geometry (~2s for SH)
Total round-trip: ~3-5s for a small house

Compare this to Revit: change a wall → regenerate → wait 10-30s for the viewport to catch up. Our loop is competitive, and the user gets a full BOM + BOQ + 4D schedule with every compile — not just geometry.

4.6 What NOT to Put in the Browser Modeller¶

Feature	Why Not	Where Instead
Vertex-level editing	Not a mesh editor	Bonsai / Blender
Custom BOM authoring	Complex tree editing	Desktop BOM editor
IFC import/export	Heavy parsing	Server-side extraction pipeline
Multi-user collaboration	Needs conflict resolution	Future phase — OT/CRDT on Work Orders
Undo history >1 level	Memory cost	Single undo = revert to previous Work Order

4.7 2D Integration¶

The 2D Layout pipeline (2D_Layout/) produces floor plans from the same compiled DB. In the browser:

2D overlay — render 2D plan as SVG/Canvas overlay on the 3D view
Grid editing — user drags on 2D plan, sees 3D update after compile
Dimension display — room dimensions from DB, rendered as 2D annotations
Toggle — button to switch between 3D perspective and 2D plan view

The 2D→3D link is the same DB. No separate 2D file — query element_transforms filtered by storey, project to XZ plane, draw walls as lines.

4. What NOT to Put In (Performance Guards)¶

Feature	Why Not	Alternative
Real-time shadows	GPU expensive, no value for review	Ambient + hemisphere light
Physics / collision	Not a game engine	Visual overlap is fine for review
Full IFC schema editor	Scope creep	Edit in Bonsai, view in browser
Modifier stacks / GN	Blender-specific	Pre-tessellated BLOBs only
Animation / keyframes	Not a timeline tool	4D = show/hide by schedule
Texture maps	Large downloads, marginal value	Flat colour from material_rgba
Post-processing (SSAO, bloom)	GPU budget	Clean flat rendering is sufficient

Performance contract: 60fps orbit with up to 50K rendered meshes. Above 50K, implement shred-on-distance (same as Bonsai Direct Stream).

5. Relation to Existing Specs¶

Spec	Role	Browser Edition Touch
BIM_Designer.md	Architecture vision (Blender)	Phase 4 adapts composition UX to browser
`internal/BIM_Designer_SRS.md`	50 testable requirements (archived)	Phase 2-3 implements subset (viewer + inspector)
RTreeGuide.md	Blender viewer user guide	Browser edition gets its own guide
MANIFESTO.md	DB-as-model philosophy	Browser edition IS the proof
4D5DAnalysis.md	nD engine spec (4D-8D)	Phase 3 ports engine to JS — same templates, same SQL, browser-native

5.1 Does This Replace the Blender BIM Designer?¶

No. They serve different audiences:

	Blender BIM Designer	Browser Edition
Audience	BIM authors, designers	Stakeholders, reviewers, site teams
Capability	Full composition + compilation	View + query + analyse
Install	Blender + addon	Just a URL
Offline	Yes	Yes (after download)
Edit	Yes (Work Orders, BOM)	Phase 4 only
Backend	Java compiler	None (Phases 1-3)

6. Quick Start¶

6.0 Live Demo — Zero Install¶

Open in any browser (desktop or mobile). See also: Mobile & Cloud Deployment for OCI setup, APK packaging, and offline strategy.

BIM OOTB — 25 buildings, 1M elements

Click any building → downloads its DB (1-60MB) → streams geometry in your browser. Cached in IndexedDB — second visit is instant. Explore all 30 archetypes to unlock the full city (786 buildings).

Works on desktop and mobile. No install, no account, no server.

BIM OOTB on mobile — Terminal 48K elements, Site Camera — BIM OOTB on mobile — Terminal building (48K elements), element picker, discipline bars, and Site Camera button. Same URL, no app install.

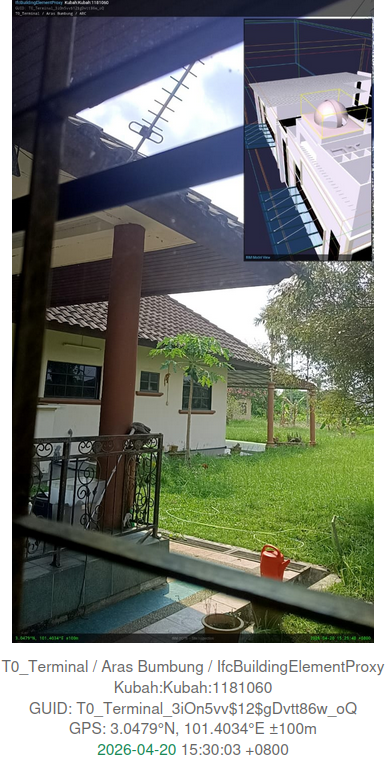

Site Camera — photo + BIM model + GPS + timestamp — Site Camera — one tap captures site photo with BIM model view, element metadata, GPS coordinates, and timestamp. Share directly to WhatsApp.

Site Camera features (mobile only):

BIM model PiP — 3D view composited into the photo (top-right), auto-rotated to match compass
Compass-aligned model — Three.js camera rotates to match phone heading using IFC TrueNorth (project_metadata.true_north_angle). The PiP shows the same face of the building you're physically looking at
Element metadata — IFC class, name, GUID, building, storey, discipline (top bar)
GPS coordinates — device position with Google Maps link in share text
Compass bearing — direction you're facing (e.g. 127° SE), stamped on photo
Timestamp — capture time with timezone
QR code — scannable link back to the element in the viewer
Markup tools — draw arrows, circles, freehand, and text annotations on the photo before sharing
Share — Web Share API (WhatsApp, email, any app) with photo + metadata + Maps link
Undo — step back through annotations

No native app. No account. Works offline after first load.

TrueNorth alignment: The IFC file contains IfcGeometricRepresentationContext.TrueNorth — a direction vector defining the building's orientation relative to geographic north. The extraction script stores this as true_north_angle in project_metadata. When the Site Camera opens, the viewer reads the phone compass and the building's TrueNorth, then rotates the 3D camera so the model snapshot matches the physical viewing direction. This is the same capability that Trimble SiteVision sells for $10K+ with proprietary hardware — delivered here in a browser, on any phone, for free.

6.1 Local Setup (3 steps)¶

# 1. Go to deploy folder
cd deploy

# 2. Start local server (no venv, no install — built-in Python)
python3 -m http.server 8080

# 3. Open in browser
# http://localhost:8080/landing.html

Per-building DBs must be in deploy/buildings/: - {Name}_extracted.db — building metadata + transforms - {Name}_library.db — geometry BLOBs (vertices + faces)

6.2 Extract Your Own IFC¶

Prerequisites (all platforms): - Python 3.10+ — python3 --version - IfcOpenShell — pip install ifcopenshell - Java 17+ — java --version (for DAGCompiler geometry extraction) - Maven 3.8+ — mvn --version (build only, one-time)

Works on Linux, Mac, and Windows (native Python or WSL).

# One-command onboarding (Linux/Mac)
./scripts/onboard_ifc.sh --prefix XX --type House --name 'My Building' --ifc path/to/model.ifc

# Or step-by-step (all platforms):
# 1. Extract metadata + transforms from IFC
python3 DAGCompiler/python/extractIFCtoDB.py path/to/model.ifc deploy/buildings/MyBuilding_extracted.db

# 2. Extract geometry BLOBs to library
mvn -q compile -pl DAGCompiler
java -cp DAGCompiler/target/classes com.bim.compiler.library.ComponentLibrary \
  path/to/model.ifc deploy/buildings/MyBuilding_library.db

# 3. Serve locally
cd deploy && python3 -m http.server 8080
# Open: http://localhost:8080/rtree_browser_demo.html?db=buildings/MyBuilding_extracted.db&lib=buildings/MyBuilding_library.db

Full guide: IFC Onboarding Runbook (8 steps, self-service). Platform setup: Systems Installer Guide §1-2.

6.2b All Features (Browser + Mobile)¶

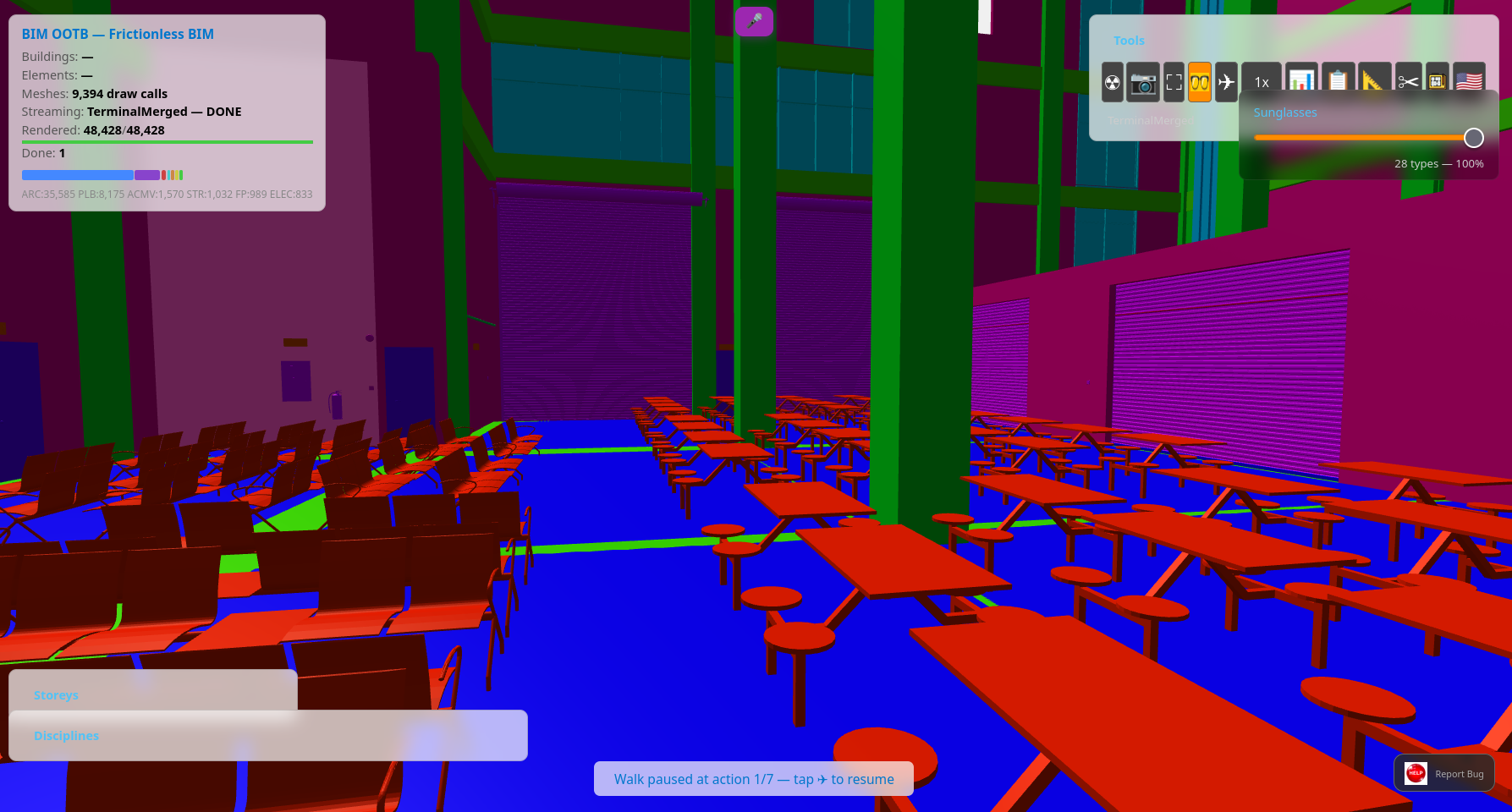

Browser (desktop + mobile): - 3D orbit, pan, zoom (mouse or touch) - Click any element → IFC class, GUID, storey, discipline, material - Fly-tour — auto-orbits rendered buildings, click to stop - Indoor walk-through — follows IfcSpace/door graph through the building - Walk speed control (1x / 2x / 4x) - X-Ray mode (Alt+Z) — transparent view, see structure through walls - Measure tool — tap two points, get distance in metres - Section cut — horizontal clip plane, slider to cut through floors - Storey filter — isolate a single floor - Discipline toggle — show/hide ARC, STR, MEP, ELEC, etc. - Screenshot — saves current view as PNG - Fullscreen - Light/dark theme - Deep-link URL — camera + building state encoded in hash, shareable - 4D/5D export — element schedule + cost estimate - IndexedDB cache — download once, instant on revisit - City mode — 786 building bboxes, click to download + stream on demand

Mobile-only (touch-optimised, larger buttons): - Site Camera — opens phone camera with GPS + compass + timestamp overlay - BIM PiP (picture-in-picture) — 3D snapshot in camera corner - Markup tools — arrow, circle, freehand draw, text (on captured photo) - Colour picker for markup - Share → WhatsApp (with BIM context baked into image) - Save to gallery - GPS Walk Mode — blue dot tracks your position in the model - Anchor prompt — set GPS origin at building entrance - Compass heading → model azimuth (TrueNorth aligned) - Issue log — capture site issues with photo + GPS + classification - Export issues to Excel - Wall X-Ray — tap a wall in Walk Mode to see MEP behind it

6.3 Controls¶

Input	Action
Drag	Orbit camera
Shift + Drag	Pan camera
Right-click drag	Pan camera
Scroll / Pinch	Zoom
Click element	Identify — shows class, name, GUID, storey, material
Alt+Z	X-Ray toggle
F11	Fullscreen toggle

Button	Action
Clear	Remove all streamed meshes
X-Ray	Toggle 15% transparency on all elements
📷	Screenshot (saves PNG to Downloads/)
⛶	Fullscreen
☆ / ☾	Light/dark theme (white bg hides bboxes for print)
✈	Fly around rendered buildings

6.5 Panels¶

Panel	Position	Shows
BIM OOTB	Top-left	Buildings, elements, streaming progress bar, element flicker
Tools	Top-right	Filter, buttons, building list (clickable cards)
Info	Bottom-right	Clicked element metadata (class, GUID, storey, disc, material)
Storeys	Bottom-left	Floor filter — click to isolate one storey
Disciplines	Bottom-left	Discipline toggle — click to show/hide ARC, STR, MEP etc.
Status	Bottom-centre	Current streaming state

All panels collapse with −/+.

6.6 Workflow¶

Open the URL → city of bounding boxes appears
Click a building in the list (right panel) → flies to it, streams geometry
Watch the progress bar and element flicker as it renders
Click any element → Info panel shows IFC metadata
Filter by storey or discipline (bottom-left panels)
Alt+Z for X-Ray, ☆ for white background
✈ to fly around all rendered buildings
📷 for screenshot
Switch to another building → first one pauses, click back to resume
Share the URL (includes building + camera position in hash)

7. Action Roadmap — OCI Deployment¶

7.1 Deployment Steps¶

Step	Action	Status
1	Create OCI Object Storage bucket (public read)	DONE
2	Upload viewer HTML (with progress loader)	DONE
3	Upload per-building DBs (14 archetypes)	DONE
4	Auto-detect OCI base URL in HTML	DONE
5	Landing page with manifest (30 archetypes, 11.8KB)	DONE
6	Per-building split for ALL 30 archetypes (S203)	DONE
7	IndexedDB cache — download once, instant revisit	DONE
8	City mode — 786 bboxes from city_index.db (324KB)	DONE
9	"Complete the City" progress + LAUNCH CITY button	DONE
10	Deploy Java compiler container for Phase 4 modeller	Phase 4

7.2 OCI Resource Plan¶

Resource	Current (Always Free)	Phase 4 (Modeller)
Object Storage	3 buckets, ~1.5GB used of 20GB free	Same + compiled output DBs
Compute	None	1 Container Instance (Java JAR)
Network	CDN for JS libs, OCI for DBs	+ REST endpoint for compile
Cost/month	$0 (Always Free tier)	~$20 (+ container hours)
Domain	OCI URL (working)	Recommended

7.3 Per-Building Deployment (Alternative)¶

For clients who only need one building:

# Extract single building to standalone DB
scripts/extract_building.sh T0_Hospital > deploy/Hospital_extracted.db
# Upload: bim_designer.html + Hospital_extracted.db + component_library.db
# Total: ~70MB instead of 1.1GB

7.4 Deliverables Checklist¶

[x] Browser viewer with streaming geometry (S200)
[x] Rotation, transparency, original IFC materials
[x] X-Ray mode (Alt+Z), wireframe toggle
[x] Click-to-identify (double-click → element metadata)
[x] Storey isolator (floor filter buttons)
[x] Collapsible panels (−/+ toggle)
[x] Trackpad + mouse orbit/pan/zoom
[x] HUD with building name, streaming progress
[x] Per-building DB extraction (scripts/extract_per_building.py) — all 30 archetypes
[x] OCI bucket setup + public URL (ap-kulai-2, bim-ootb-full)
[x] IndexedDB cache (download once, instant revisit)
[x] City mode (city_index.db, 786 bboxes, click-to-stream)
[x] "Complete the City" gamification (progress bar, LAUNCH CITY button)
[x] Modular refactor (rtree_browser_demo → sandbox/ with 16 JS modules, S209)
[ ] Java compiler container for Phase 4

8. Technical Details¶

For file structure, call chain, OCI bucket layout, deployment rules, and debug/testing procedures, see:

Plugin SDK — API reference, plugin tutorial, AI-assisted development
Roadmap — S210-S214 sequencing, 10 blue ocean scenarios

8.1 Key Technical Decisions¶

No build step. 16 plain JS modules, CDN dependencies. No npm, no webpack, no React.
sql.js over REST. The browser IS the database client. No API layer to maintain.
Three.js r128 (stable). Not latest — proven, small, well-documented.
BufferGeometry from BLOBs. Same pipeline as Blender's from_pydata(). Vertex swap: IFC (x,y,z) → Three.js (x,z,-y).
IndexedDB cache. Per-building DB cached on first visit. Second visit = instant.
Plugin architecture. Each module follows function setup*(APP) pattern. Same pattern for core and community plugins.

8.2 Test Suite¶

node deploy/sandbox/test_all.js    # 149 tests, must be 100%

Covers: JS syntax, module wiring, button→function mapping, z-index hierarchy, OCI live + content match, URL integrity (greedy regex proof), DB chart data verification, button wiring audit. See §10 full breakdown for details.

9. FAQ — Addressing Common Critiques¶

9.1 "Where's the property panel? Without it, this is just a pretty viewer."¶

Already shipped in S200 (Phase 1). Click any element → Info panel shows IFC class, name, GUID, storey, discipline, and material. Storey filter isolates floors. Discipline toggle shows/hides ARC, STR, MEP. All panels collapsible.

BIM OOTB — Storey filter, discipline toggle, property inspector — Storey filter (bottom-left), discipline toggle, and element property inspector (bottom-right) — all shipped in S200.

9.2 "What's the workflow for getting new IFC files into this system?"¶

See §6.2 (Extract Your Own IFC). One-command onboarding, proven on 12+ buildings. Full guide: IFC Onboarding Runbook. Platform setup: Systems Installer Guide §1-2.

The extraction scripts require Python 3 + IfcOpenShell — works on Linux, Mac, and Windows (WSL or native Python).

9.3 "1.1GB full download is a non-starter for mobile."¶

Solved (S203). Per-building split means each building downloads independently: - SampleHouse = 0.5MB, Duplex = 2.8MB, Clinic = 31MB, Hospital = 88MB - IndexedDB cache = download once, instant on revisit - Most real-world use is single-building — a site supervisor reviews one building, not the whole city - City mode uses 324KB index for bboxes, downloads individual buildings on demand

9.4 "Geometry dedup — wouldn't glTF instancing be more efficient?"¶

The DB already deduplicates at the geometry_hash level — same mesh BLOB stored once, referenced N times by elements sharing that hash. The Three.js side currently creates one BufferGeometry per element. Upgrading to InstancedMesh for repeated hashes is a rendering optimization (~2x memory reduction for repetitive buildings like hospitals) — it's an enhancement, not an architecture change. The instancing data is already in the DB.

9.5 "Schema changes require redeploying DBs. No versioning story."¶

The schema mirrors the IFC entity model, which moves slowly (IFC4 released 2013, IFC4.3 released 2024). The elements_meta + component_geometries tables haven't changed since the architecture stabilized. For nD analytics, the output tables (simple_qto, construction_schedule, etc.) are generated on the fly by the nD engine — they don't need to ship in the DB.

9.6 "Phase 4 is years away from Revit parity."¶

Phase 4 is not trying to replace Revit. Revit is a geometry modeller. Phase 4 is a parameter editor that triggers compilation — grid drag, room resize, BOM recipe swap, jurisdiction dropdown. The browser sends macro parameters, the Java compiler does the spatial maths, the browser re-renders the result. See §4.2.

Different category, different audience: stakeholders, reviewers, site teams — not CAD operators. For authoring-grade modelling, use Bonsai/Blender.

9.7 "No collaboration story."¶

By design. This is a review deliverable, not a collaboration platform. The workflow: author in Bonsai → compile → deploy URL → stakeholders review a frozen snapshot. The URL includes building + camera position (deep-link hash). For multi-user editing, the Phase 4 backend would accept Work Orders — conflict resolution via last-write-wins on the compile endpoint (same as a CI pipeline). CRDT/OT is future scope, spec'd in §4.6.

9.8 "The nD analytics (4D-8D) are speculative."¶

The nD engine is working code — scripts/nD_engine.py, proven at 1,063,563 elements across 37 buildings + 1M-element sandbox city. 5 dimensions in 8.7 seconds. Excel export (township-level BOQ with 30 archetype sheets) already ships. See 4D5DAnalysis.md for full results, test witnesses, and fleet report.

The browser port is ~800 lines of SQL queries + arithmetic + JSON template parsing. Same templates, same DB, same output tables — just JavaScript instead of Python. This is not speculative; it's a straightforward port of proven code.

10. Developer Resources¶

Full technical details have moved to dedicated specs:

Plugin SDK — API reference (5 block categories, ~30 methods), beginner tutorial, advanced example (progress tracker), AI-assisted plugin development, DB schema reference
Roadmap — S210-S214 sequencing, plugin marketplace, plugin IDE, 10 blue ocean scenarios
OCI Deployment — bucket layout, upload commands, cost

Quick Reference¶

# Test (must be 149/149 before deploy)
node deploy/sandbox/test_all.js

# Local dev server
cd deploy && python3 -m http.server 8080
# → http://localhost:8080/landing.html

# Deploy to OCI (both buckets)
oci os object put --bucket-name bim-ootb-full --file deploy/sandbox/tools.js --name sandbox/tools.js --content-type application/javascript --force
oci os object put --bucket-name bim-ootb --file deploy/sandbox/tools.js --name tools.js --content-type application/javascript --force

Console Log Tags¶

Tag	Module	Meaning
`[S192]`	streaming.js	DB loading, BLOB fetch, streaming progress
`[S200]`	streaming.js, tools.js	Material samples, x-ray, section cut
`[S203]`	scene.js	IndexedDB cache hit/miss
`[S205]`	issues.js, sitecam.js	Issue save/clear, section, site camera
`[S209]`	excel.js, issues.js	Excel export, issue status toggle

Filter in F12 Console by tag (e.g. [S209]) to diagnose issues.
